Dukes 4x4 and Camping switches and sockets are backed by a 24mth replacement warranty
All products are held in stock in Brisbane and are posted from Brisbane same or next business day
All switches available in red, blue, green & amber.
Our switches are 4 pin unless specified. They are easier to wire up and still have the two LED's. See wiring diagram in photos above.
Switches are the standard Carling/ARB size.
All switches are standard on-off, except:
- Winch in/out - (on)-off-(on)
- Winch <> are - (on)-off-(on)
- ↑↓ - (on)-off-(on)
- Trim Tabs - (on)-off-(on)
- Drive Tilt - (on)-off-(on)
- Wiper/Washer - off-on-(on)
- Engine Start - (on)-off
- Horn - (on)-off
- Sub Tank - (on)-off
- Hazard Warning - on-off DPST
- Batt 1 Batt 2 - on-off-on
All switch styles available with different switch configuration (on)-off-(on), on-on, (on)-on, (on)-off, on-off-on (brackets means momentary).
Switches have LED bulbs the same colour as the lens, this gives the switch a nicer look when LED's are on and they don't get hot like incandescent bulbs.
Small bottom light can be wired to light illumination circuit (on when car lights are on).
Large top light illuminates when the switch is turned on.
Rated to 20A at 12VDC or 10A at 24VDC.
Check out our images for switch circuits and dimensions.
Pickup available from Warner QLD 4500

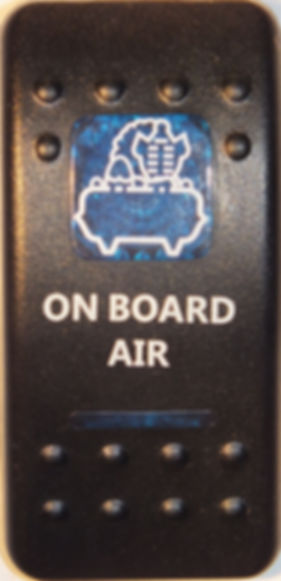

ON BOARD AIR Rocker Switch
- Comes in SPST on-off, if you want something else contact us.
